Marine Cooler and Shell-and-Tube Heat Exchanger Renewal

Removal of the tube bundle, inspection for corrosion and leakage, repair or made to measure remanufacture of U-tube bundles and tube sheets.

The exchanger is dismantled and the tube bundle withdrawn from the shell. After fouling, corrosion, leakage and deformation have been assessed, dimensions are taken. The bundle is repaired where possible, otherwise a new one is built to fit the existing shell. Baffles and support plates are checked separately.

Tube bundleTube sheetU-tube bundleBaffleRe-tubingLeak test
Newly built U-tube bundle with tube sheet fitted
Newly built U-tube bundle with tube sheet fitted
01

Scope

Sequence of work

  1. Dismantling the exchanger and withdrawing the tube bundle
  2. Inspection for corrosion, fouling, leakage and deformation
  3. Dimensional survey and material identification
  4. Preparation of U-bent tubes
  5. Inspection or renewal of baffles and support plates
  6. Repair or remanufacture of the tube sheet
  7. Tube installation and expansion
  8. Pressure and leak testing
  9. Assembly and commissioning support

Where the work is done

  • On board, in the machinery space or on deck
  • In the yard, while the vessel is docked or alongside
  • In the workshop in Tuzla, when the equipment is removed and brought in
  • Across Türkiye and, where required, in foreign ports
02

From this work

The photographs were taken in the field and in the workshop. The captions describe only what is visible.

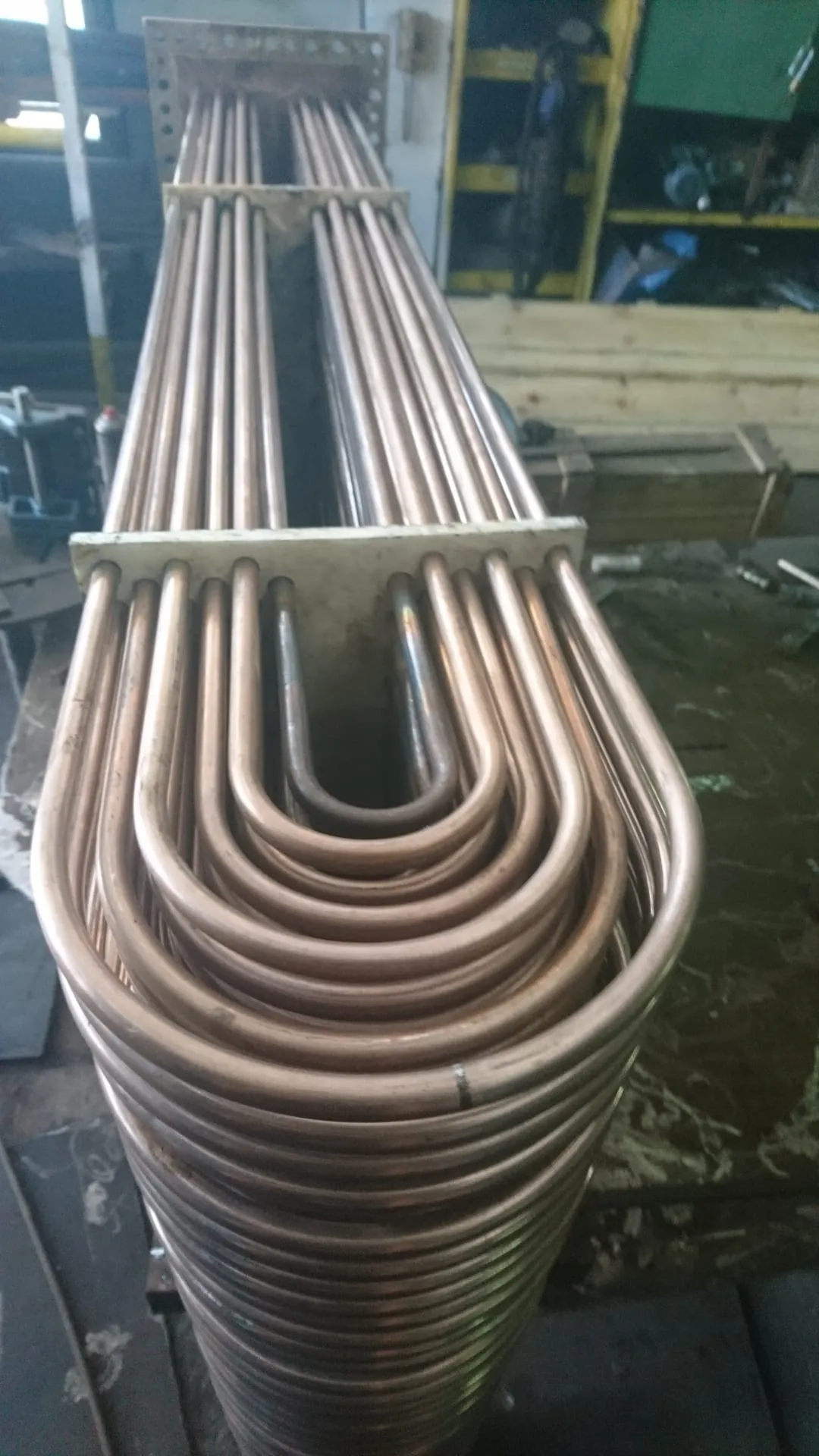

Newly built U-tube bundle with tube sheet fitted
Newly built U-tube bundle with tube sheet fitted

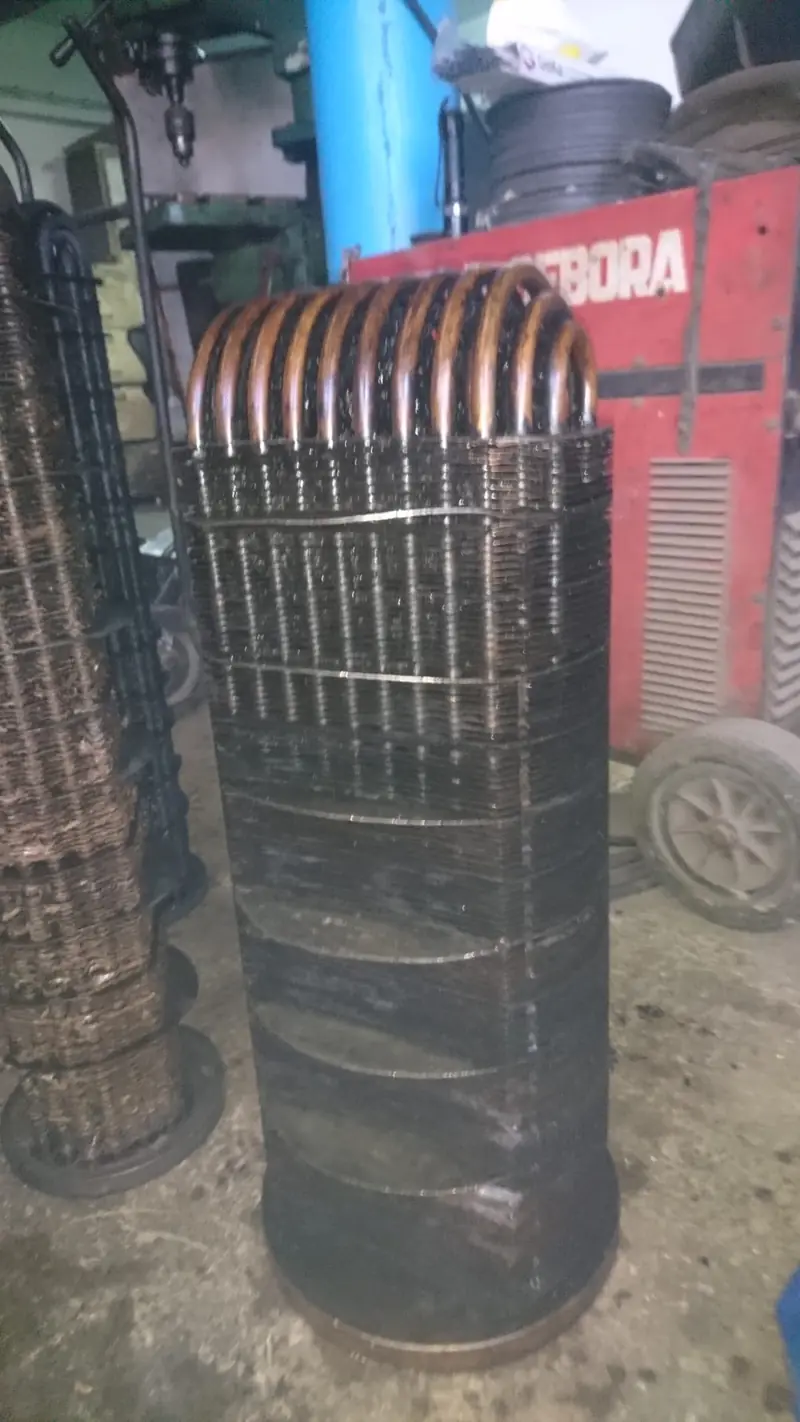

Removed original bundle with heavy fouling on the tube surfaces
Removed original bundle with heavy fouling on the tube surfaces
Original bundle beside the new one
Original bundle beside the new one

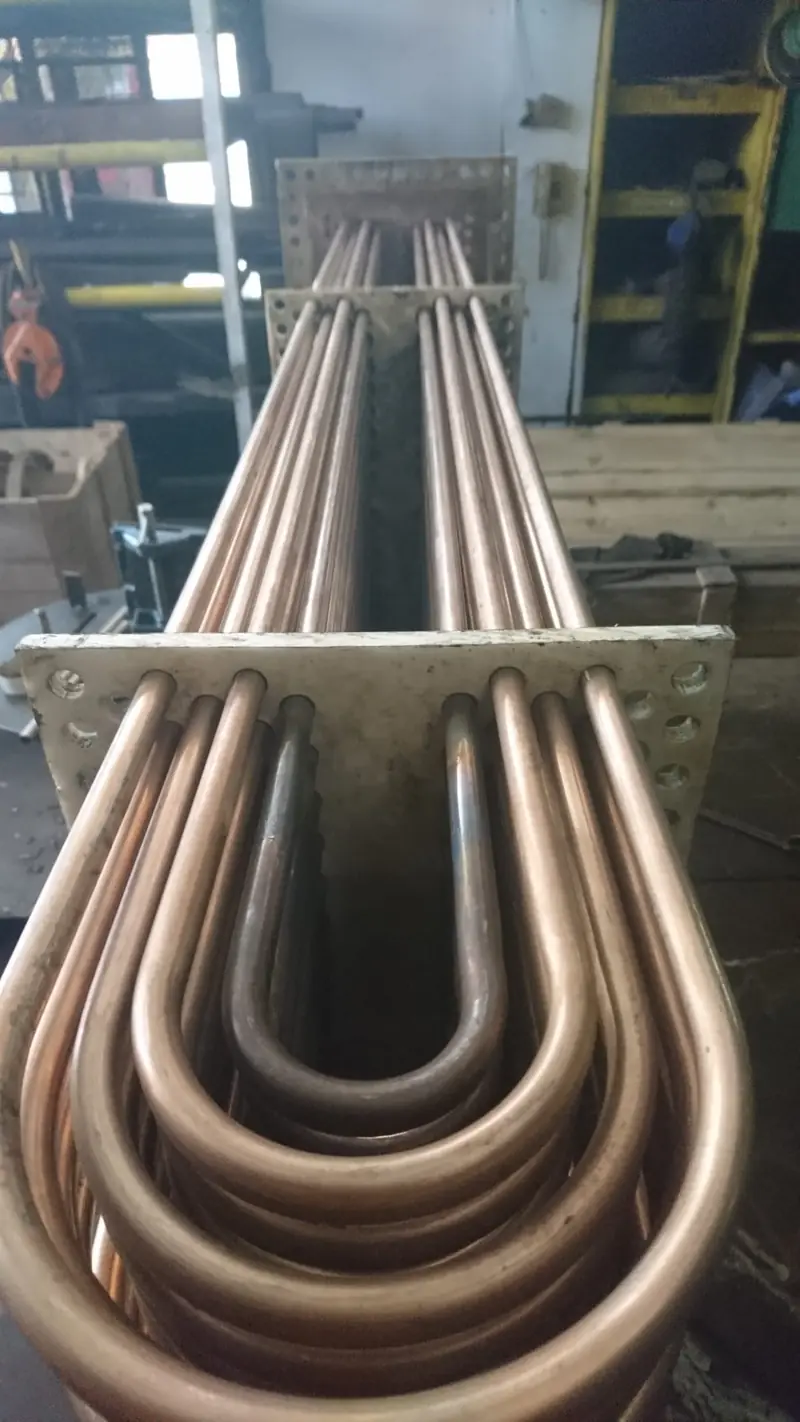

U-bend section and tube spacing
U-bend section and tube spacing

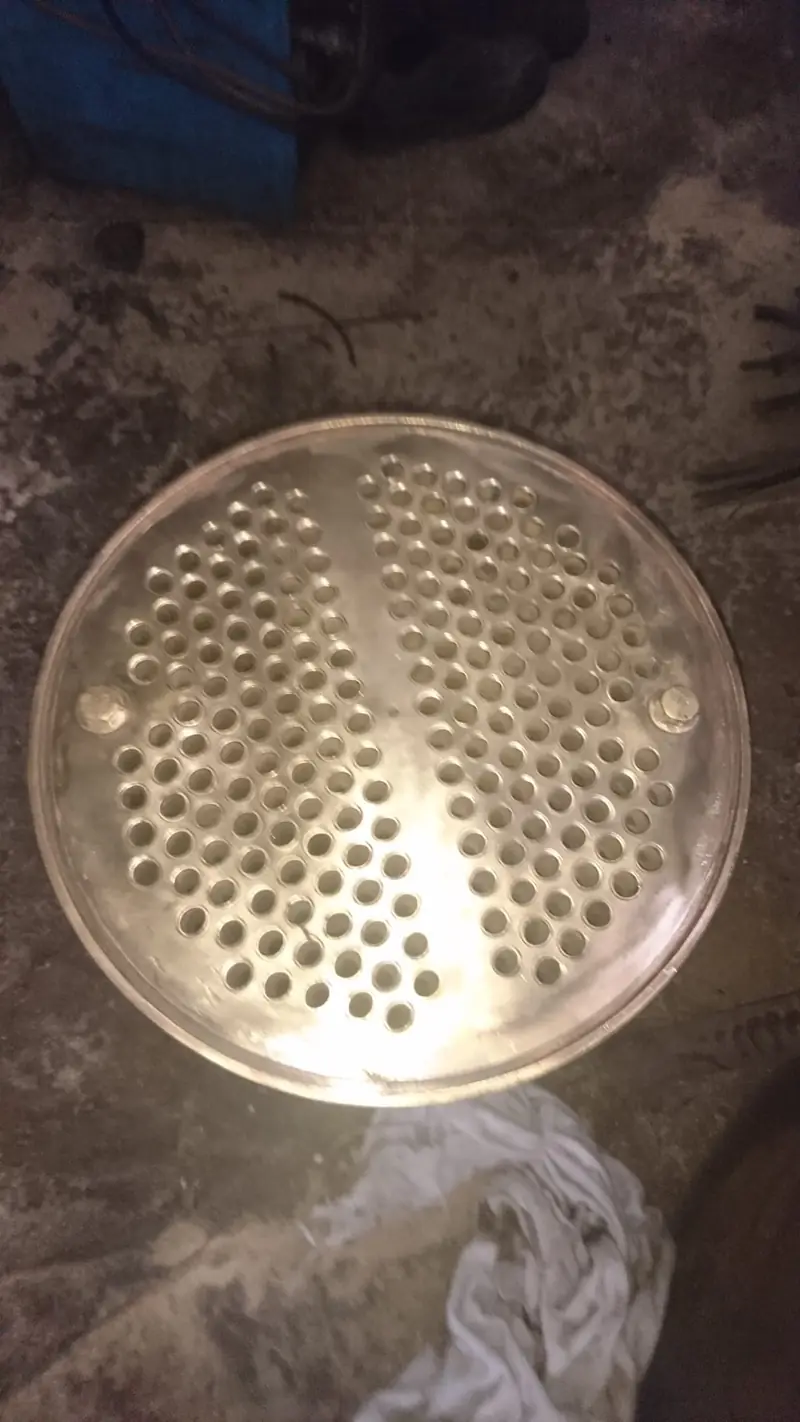

Circular tube sheet with the hole pattern drilled
Circular tube sheet with the hole pattern drilled

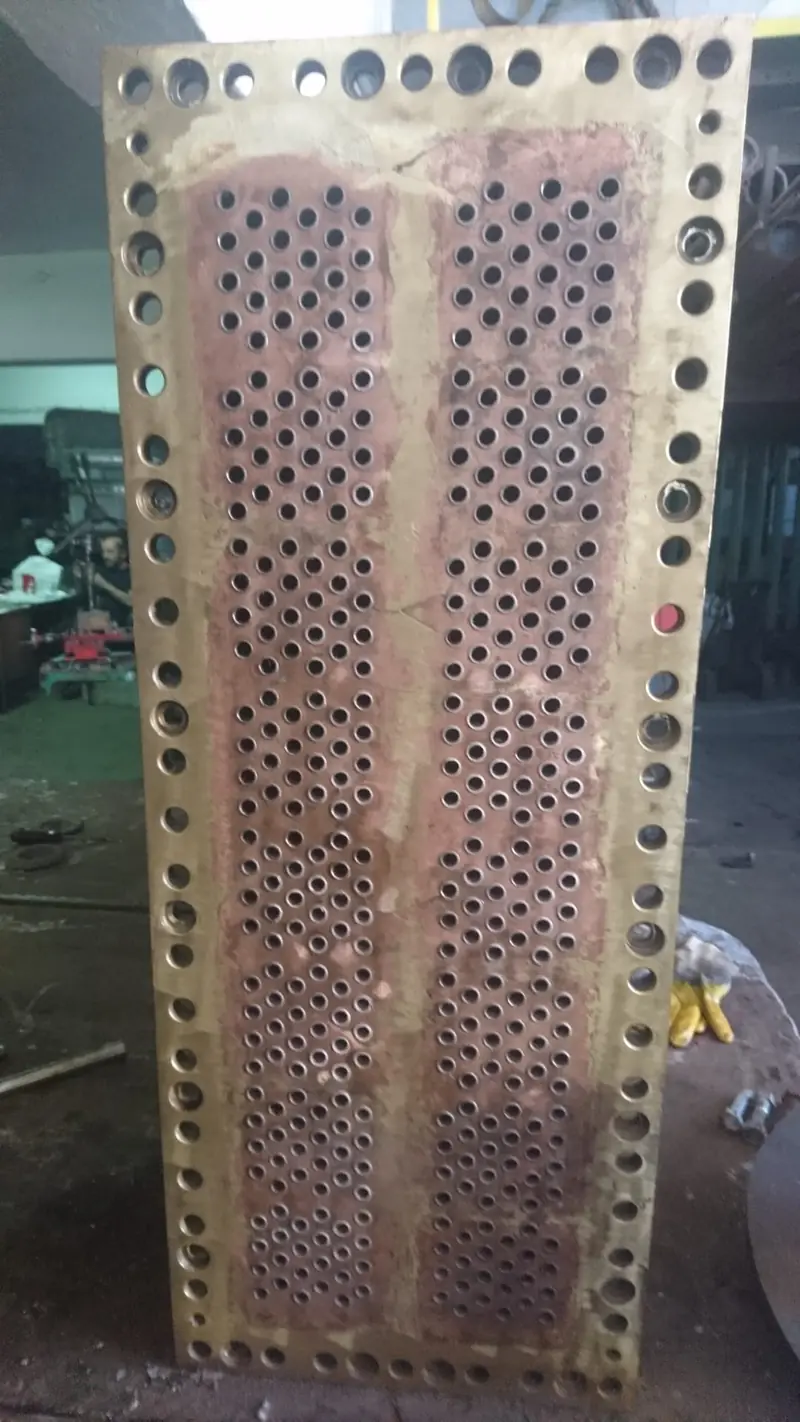

Rectangular tube sheet from the removed equipment
Rectangular tube sheet from the removed equipment

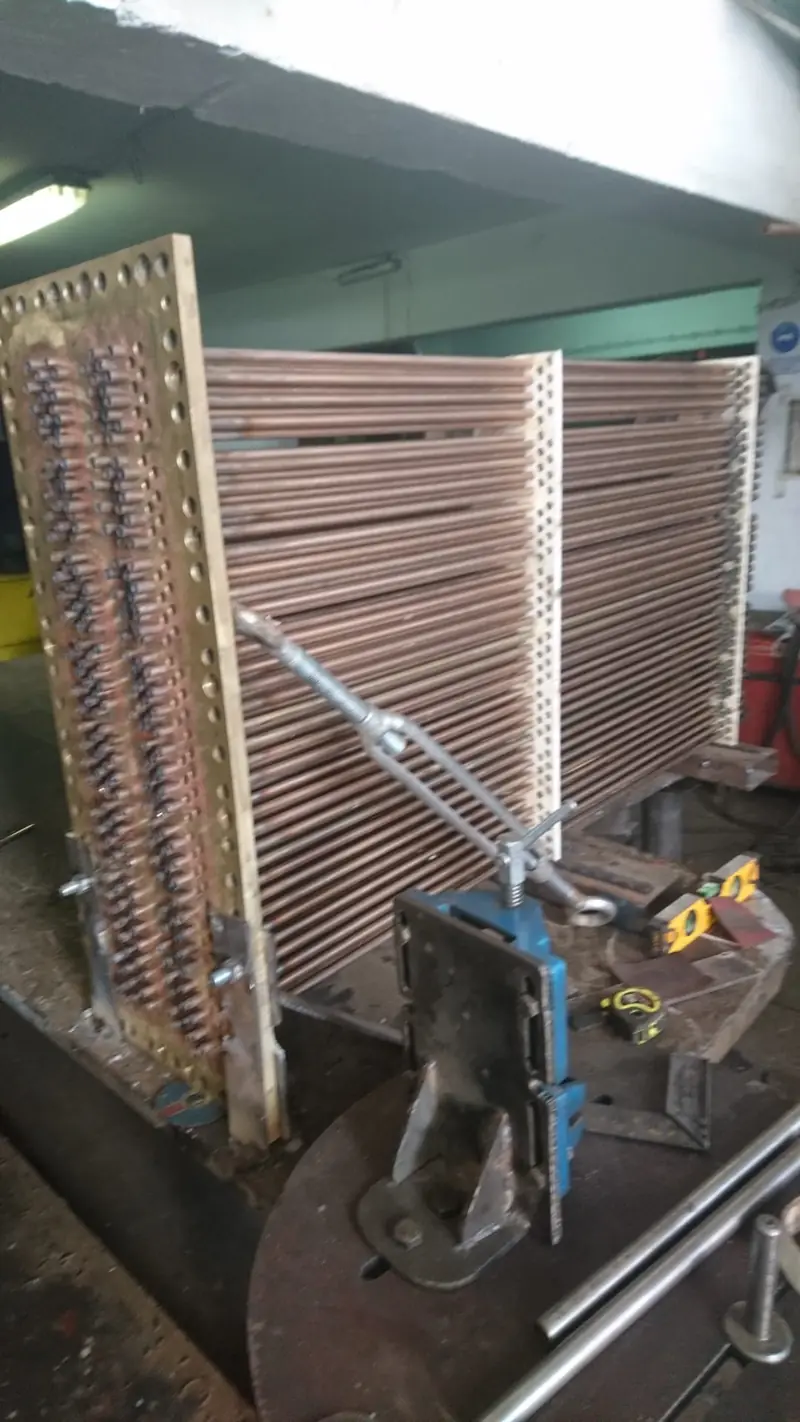

Bundle with baffle plates fitted, in the workshop
Bundle with baffle plates fitted, in the workshop

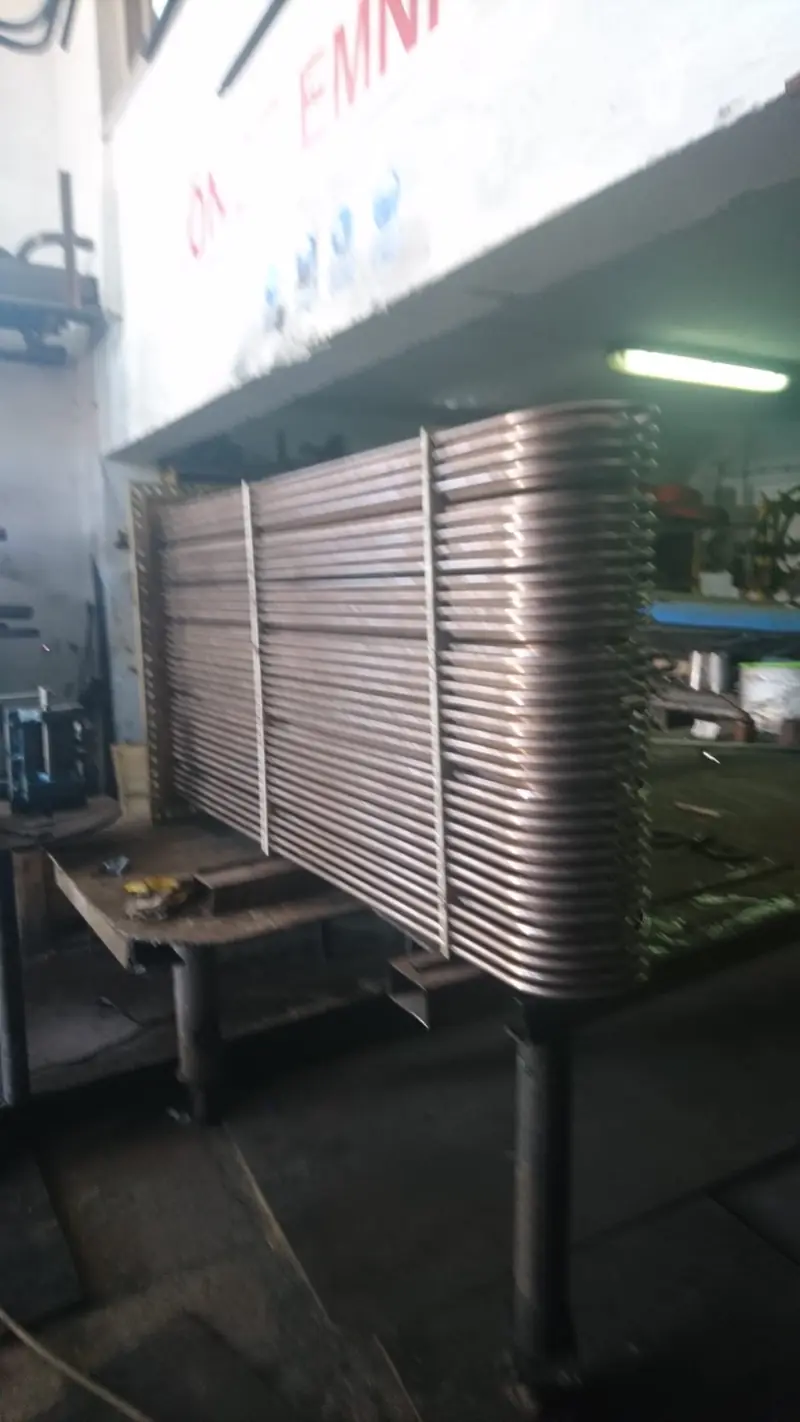

Completed bundles before delivery
Completed bundles before delivery
03

Other services

04

Contact

Request a survey

Scope and duration are not quoted before the failure has been seen in place. Let us know the port where the vessel lies and the type of equipment, and contact us using the details below to arrange a survey.
